NEW ULTRALIGHT ARRIVES ON AMERICAN MARKET
For the past four years, the TL 22 DUO has been in production and available
only to the European market until now. The Czech made trike just made it's
American debut at "OSHKOSH" '97. The seven year old company was
formed by a group of Czechs which had been working for the Czechoslovakian
government developing and manufacturing aircraft technologies. TL has developed
five aircraft since they started their business shortly after the revolution,
one of which is the DUO.
|
SPECIFICATIONS | OPTIONS

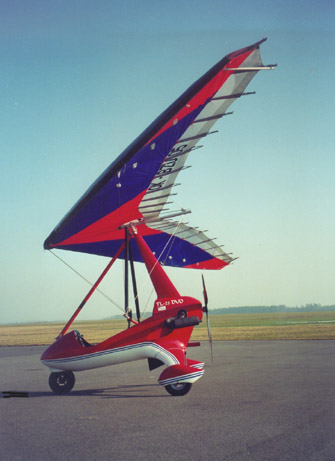

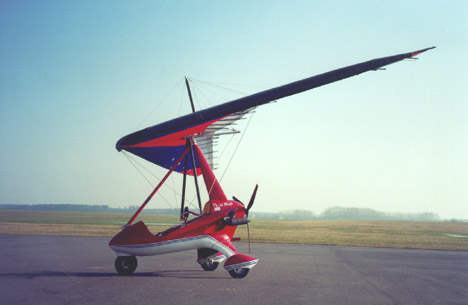

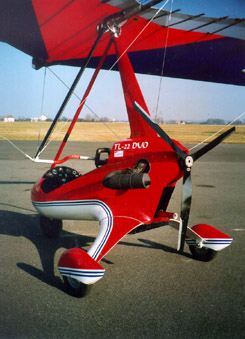

The DUO trike is the result of years of experience and a rich culture
which takes pride in quality and superb craftsmanship. With an eye catching
fiberglass shell which fully covers the proven duraluminum frame, one can
fly and look good at the same time. The DUO sits two passengers comfortably,
has a ten gallon tank and has ample room for baggage, camping equipment

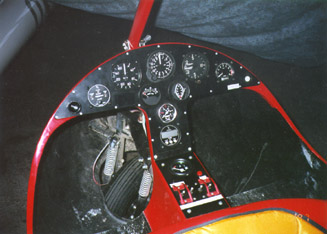

etc. As far as navigation equipment is concerned, the DUO can be equipped
with all the flight instruments one can ask for.
The trike is powered by a liquid cooled ROTAX 462 which makes 52 hp,
as well as other sizes of ROTAX engines. The 462 is rather uncommon in
America but is a relatively quiet and reliable engine which consumes about
2 to 3 gallons per hour. The DUO has a maximum speed of 75 mph and a cruising
speed of 45 mph.
Two wings are offered on this ultralight,. The ESO 14 and the sportier
ESO 13. They are made by a company also in the Czech Republic. The wings
are 13 and 14 square meters and are made of Trilam and Dacron. Over 230
of these have been produced and used on various aircraft. With these wings,
the glide ratio is approximately 9:1 at 45 mph.
If you are interested in learning more about this fine piece of machinery,
please contact us:
Pete and Dan Svec
Yellow Bee Ltd.
2533 N.Carson St., Suite Y116
Carson City, NV 89706
Telephone/Fax: 1-800-755-7739
email: Yellow Bee Ltd.
SPECIFICATIONS FOR
TL 22 DUO
Wing |
Frame | Weights | Speeds
| Engine | L/D Glide Ratio
Fuel Consumption
| Range | Distances
OPTIONS
| WlNG |
Area: |
13.8 m sq. = 148 ft sq. |
| |
Span: |
10.6 m sq. = 34.7 ft |
| |
Aspect Ratio: |
8:1 |
| |
Nose Angle: |
132 degrees |
| |
Weight: |
48 kg. |
| |
Material: |
Trilam and Dacron |
| |
|
80% bottom covered |
| |
|
|
| FRAME |
Duraluminum |
and Fiberglass shell |
| |
|
|
| WEIGHTS |
Empty weight: |
177 kg. = 390 lbs. |
| |
|
(+ ballistic parachute) |
| |
Max Load weight: |
183 kg. = 403 lbs. |
| |
Max total weight: |
360 kg. = 793 lbs. |
| |
|
|
| SPEEDS |
Max: |
120 km/h = 75 mph |
| |
Cruising: |
70 km/h = 43 mph |
| |
Stall: |
42 km/h = 26 mph |
| |
Approach: |
80 km/h = 49 mph |
| |
Take off: |
48 km/h = 30 mph |
| |
Landing: |
45 km/h = 28 mph |
| |
Never exceed: |
130 km/h = 81 mph |
| |
|
|
| ENGINE |
Liquid cooled ROTAX |
462 @ 52 horsepower |
| |
|
|
| L/D GLIDE RATIO |
9:1 at 75km/h |
= 45 mph |
| |
|
|
| FUEL CONSUMPTION |
8-12 liter per hour |
= 2.1 -3.2 gallons per hour |
| |
|
|
| RANGE |
10 gallons with reserve |
/ 135 miles |
| |
|
|
| |
DISTANCES
|
|
| |
ONE OCCUPANT
|
TWO OCCUPANTS
|
| Ceiling |
5000m = 16400ft
|
4000m = 13120ft
|
| Take off |
50m = 164ft
|
85m = 258ft
|
| 50ft object |
250m = 820ft
|
278m = 984ft
|
| Landing |
80m = 262ft
|
100m = 328ft
|
| No brakes |
160m = 525ft
|
190m = 622ft
|
Trikes can be equipped with various engines and/or a faster
wing
which changes aircraft performance.
Introductory price for ready to fly aircraft with
basic instruments and ballistic parachute
$19,500.
OPTIONS LIST FOR TL 22 DUO
TRIKE
| ENGINES: |
ROTAX 462/ liquid cooled/ 52hp @ 6500 rpm |
| |
ROTAX 503/ air cooled/ 50hp @ 6500 rpm |
| |
ROTAX 582/ liquid cooled/ 64hp @ 6500 rpm |
| |
ROTAX 618/ liquid cooled/ 74hp @ 6750 rpm
|
| ENGINE EQUIPMENT: |
Electic starter |
| |
Primer |
| |
Intake silencer |
| |
After Muffler System |
| |
C Gearbox
|
| ENGINE INSTRUMENTS: |
RPM |
| |
Motohours Rotax |
| |
Motohours Curtiss-Digital |
| |
Water Temperature |
| |
EGT |
| |
CHT |
| |
Flydat (For ROTAX 618) |
| |
RPM digital-engine hours |
| |
Built in Intercom |
| |
Fuel Computer
|
| PROPELLERS: |
3 blade composit Junkers Profly |
| |
4 blade composit Junkers Profly |
| |
6 blade composit Junkers Profly |
| |
3 blade composit Ivoprop |
| |
3 blade composit Electric Ivoprop
|
| ACCESSORIES: |
Metallic Paintfinish |
| |
Profile Tubes |
| |
Speedbar |
